Carbon Steel Equipment--color Coating Line For Construction
Technical parameters
1. Material width: 800--1250 mm
2. Strip thickness: 0.2--1.2mm
3. Substrate material: hot-dip galvanized, galvanized, cold-rolled strip, etc.
4. Outer diameter of steel coil: φ800--2000mm
5. Steel coil inner diameter: φ508/φ610mm
6. Process speed: 25--120 m/min
7. Roller coating process: continuous front and back two coating two drying
8. Coating thickness: single layer dry film thickness can be adjusted between 5-15μm on the front, single layer primer dry film thickness can be adjusted between 5-10μm on the reverse side
9. Production capacity: 3 - 150,000 tonnes/year
10. Fuel type: natural gas, electricity, LPG, coal, gas, etc.
11. Degreasing form: two-stage chemical degreasing + three-stage water rinsing + pure water spraying
12. Energy-saving approach: exhaust gas incineration, waste heat recovery
Colour coated line for construction unit performance table
| Project unit | Project name | Quantity | Process |
| Foshan Lidling | 1450mm color coating line equipment | 1 set | In Production |
| Vietnam DTL | 1450mm color coating line equipment | 1 set | In Production |
| Syria | 1450mm color coating line equipment | 1 set | In Production |

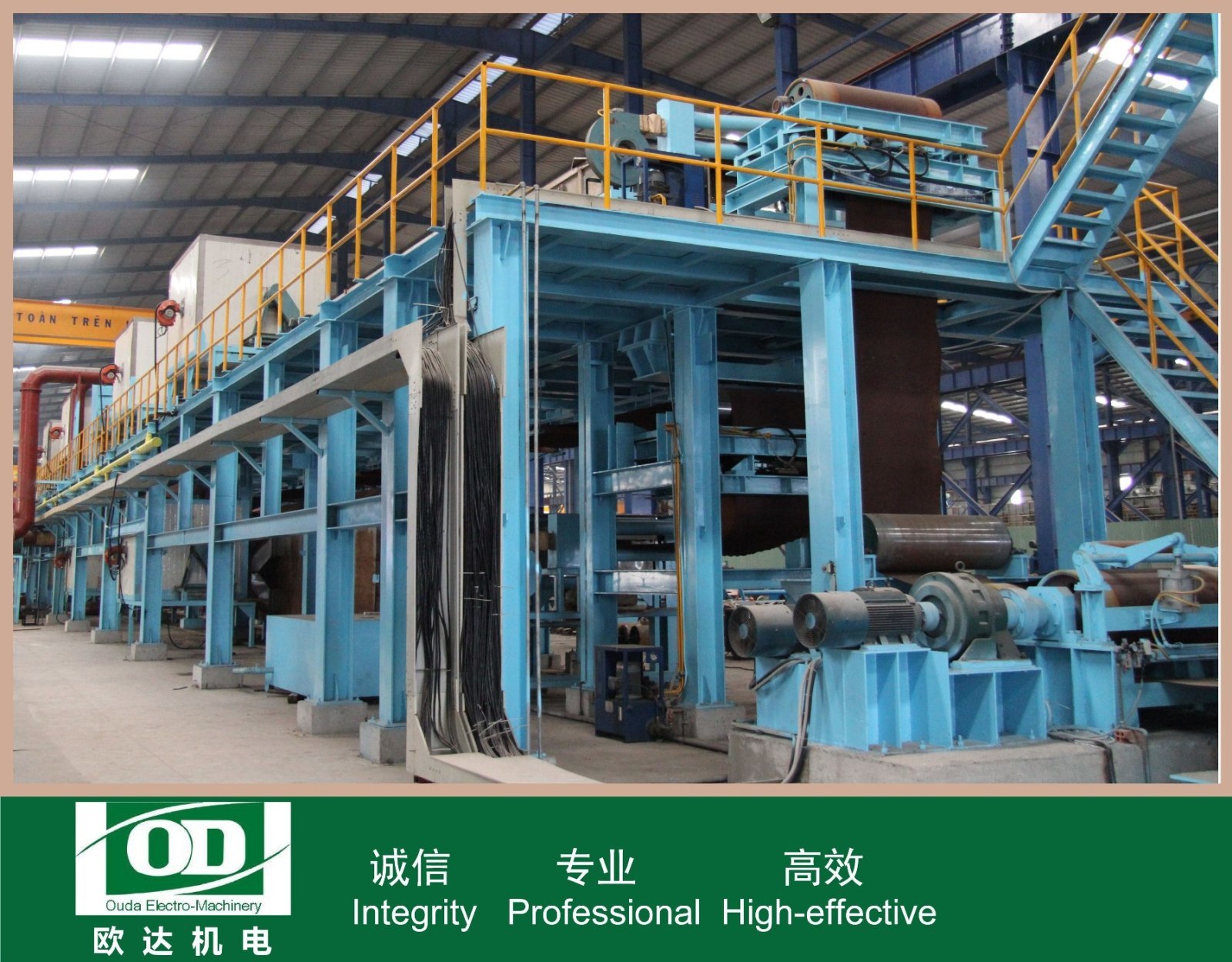

Equipment Related Images
